500x1000 Professional Rental LED Panel XD1000C4 Series

XD1000C4 Series has two quick lock devices on the left and right sides, which can ensure faster assembly speed and better screen flatness.It also has anti-collision feet at the bottom of the cabinet to protect the edge of the LED module.XD500C4 andXD1000C4 Can be installed together up and down , left and right.

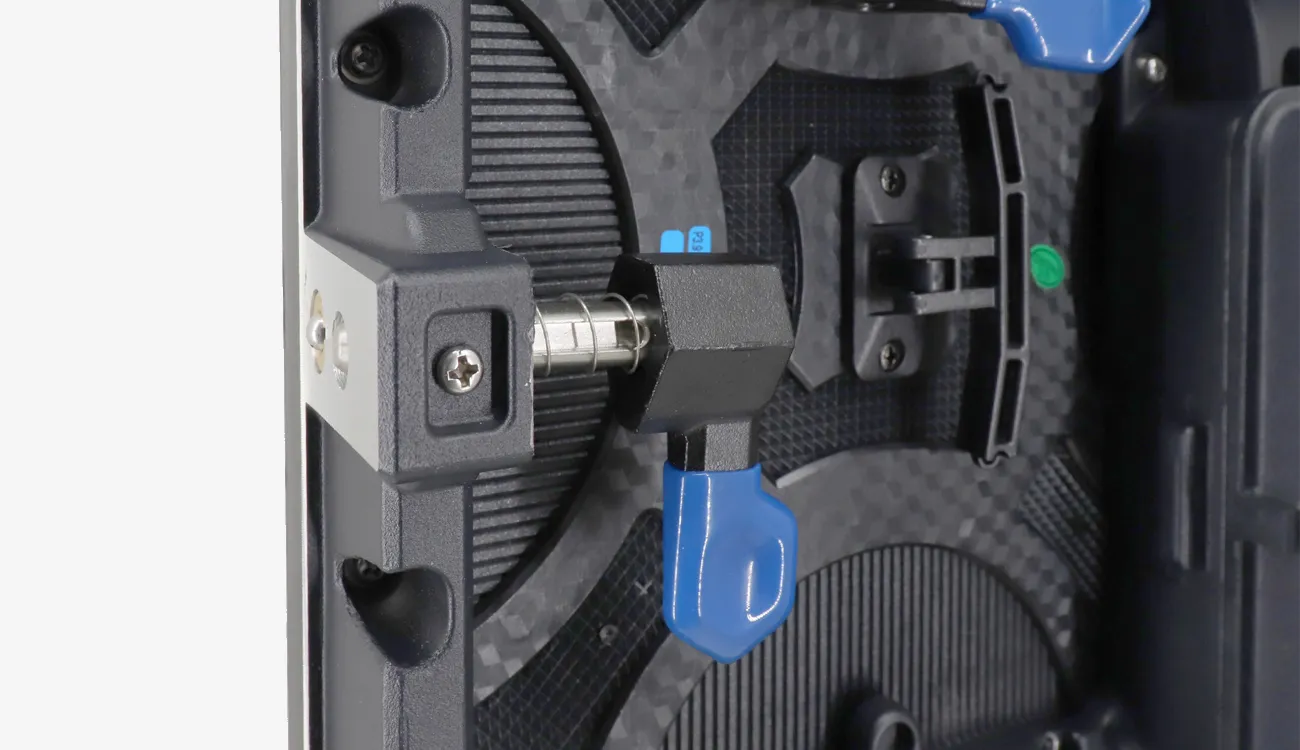

Quick Install

XD1000C4 series LED display screen Two Fast Locks on Left and Right Side,Ensure faster assembly and better screen flatness.


High Precision Curve Lock

High Precision Curve Lock design is adopted to solve the problem that the old curved lock is difficult to use before.Rotational control, more accurate, easy to use and quickly adjust curve degree.

Curved Installation Support

XD1000C4 series LED screen can be installed in inner arc or outer arc.

Free Splicing

XD500C4 series and XD1000C4 series can be installed together up and down, left and right.

Corner Protector for LED

XD1000C4 series LED sign has four corner protectors in each corner to prevent LED to be damaged,more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.

Lightweight and Thin

XD1000C4 series LED panel cabinet weighs 13KG/pc, easy to operate: one person to install, disassemble and maintain.

IP65 Dustproof And Waterproof

The XD1000C4 series outdoor LED scoreboard supports IP65 dustproof and waterproof,it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

Wide Viewing Angle

Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

Outdoor 500x1000mm Rental LED Screen XD1000C4 Series Parameter

Pixel Pitch (mm)P2.6P2.97P3.91P4.81
ModelXD1000C4-OP2.6XD1000C4-OP2.97XD1000C4-OP3.91XD1000C4-OP4.81
Pixel ConfigurationSMD1415SMD1415SMD1921SMD1921
Density (Pixels/㎡)147,928112,89665,53643,264
Module Resolution (Pixel)96x9684x8464x6452x52
Module Size (mm)250x250250x250250x250250x250
Driving Mode (Duty)1/211/211/161/13
Cabinet Size (mm)500x1000500x1000500x1000500x1000
Cabinet Weight (KG)13131313
Brightness (CD/㎡)≥6,000≥6,000≥6,000≥6,000
Viewing Angle (°)140140140140
Gray Grade (Bits)14141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)720720720560
Avg. Power Consumption (W/㎡)240240240190
Frame Frequency (Hz)≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20～+60-20～+60-20～+60-20～+60
Lifetime (Hours)100,000100,000100,000100,000
Protection GradeIP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)

Indoor 500x100mm Rental LED Screen XD1000C4 Series Parameter

Pixel Pitch (mm)P2.6P2.97P3.91P4.81
ModelXD1000C4-OP2.6XD1000C4-OP2.97XD1000C4-OP3.91XD1000C4-OP4.81
Pixel ConfigurationSMD1415SMD1415SMD1921SMD1921
Density (Pixels/㎡)147,928112,89665,53643,264
Module Resolution (Pixel)96x9684x8464x6452x52
Module Size (mm)250x250250x250250x250250x250
Driving Mode (Duty)1/211/211/161/13
Cabinet Size (mm)500x1000500x1000500x1000500x1000
Cabinet Weight (KG)13131313
Brightness (CD/㎡)≥6,000≥6,000≥6,000≥6,000
Viewing Angle (°)140140140140
Gray Grade (Bits)14141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)720720720560
Avg. Power Consumption (W/㎡)240240240190
Frame Frequency (Hz)≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20～+60-20～+60-20～+60-20～+60
Lifetime (Hours)100,000100,000100,000100,000
Protection GradeIP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)
