XD Series COB All in One LED TV

XD Series COB All in One LED TV

Adopted COB technology effectively improves the reliability,
light color and protection performance of LED display. It can
effectively achieve waterproof, dust proof, oxidation resistance,
and static electricity prevention.

Price:

Features

3840 Hz

Wide Viewing Angles

Common Cathode Design

High Strength Structure

Magnetic Suction Installation

Front Maintenance

Easy to move

Wireless projection screen

Feature Description

  • UHD full HD, intelligent brightness
  •  The interface is simple and easy to operate, and the installation is simple and easy to use.
  •  One-button start, wireless screen projection, USB plug and play;
  •  Simple and generous appearance, rich external interfaces
  •  Die-cast aluminum design, seamless border less

Video

Parameters

Size customization

81” 108” 135” 162”

Standardized Cabinet Design

Can be quickly and seamlessly spliced into a large screen

Intelligent touch

Supports 32 dots infrared touc

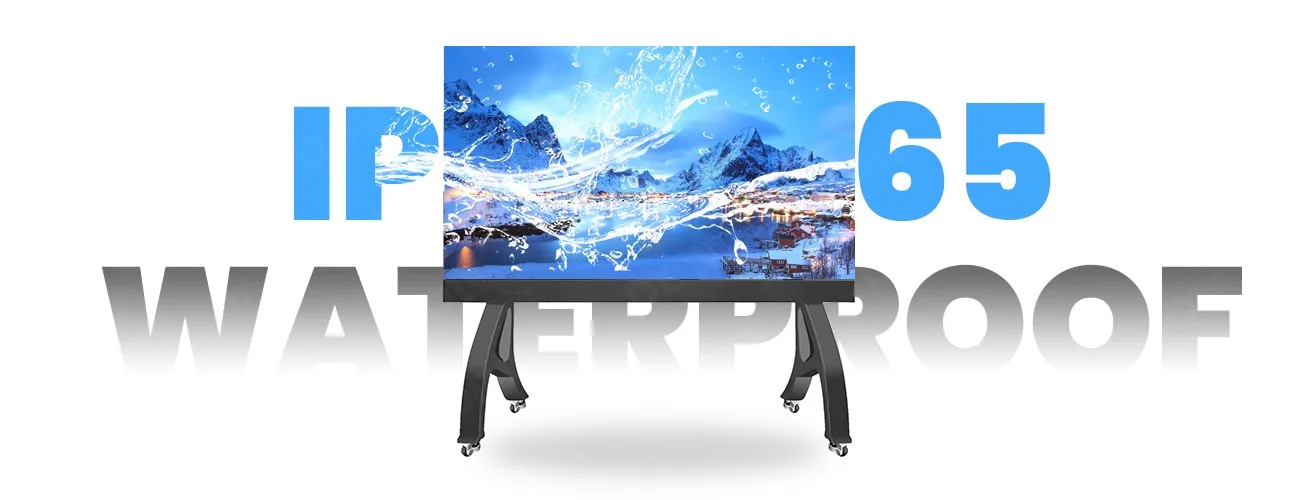

IP65 Protection Level

Waterproof, dust proof, anti oxidation, anti-static, anti impact, high stability

Installation

Various installation mode

Specifications

COB All-In-One Size 81" 108" 135"  162"
Pixel Pitch (mm) 0.93 1.25 1.56 1.87 0.93
Dot to Dot Resolution 2K(1920×1080) 2K(1920×1080) 2K(1920×1080) 2K(1920×1080) 4K(3840x2160)
Physical Density (dot/m²) 1,137,778 640,000 409,600 284,444 1,137,778
Module Size (W ×H ×D) mm 150*168.75 150*168.75 150*168.75 150*168.75 150*168.75
Module Resolution (W ×H) 160*180 120*135 96*108 80*90 64*72
Packaging Process COB Flip Chip
Cabinet Size (W ×H ×D) mm 600*337.5*32.5
Cabinet resolution (W×H) dot  640*360 480*270 384*216 320*180 640*360
Cabinet Material Die-casting aluminum
Scanning Mode 1/60 1/45 1/48 1月30日 1/60
Grey Scale (Bit) 14Bit+Control Software 2Bit=16Bit
Protection Level LED Lamp side IP65
Installation/Service Method Front or back installation/Front service
Brightness 600-3000cd/㎡ adjustable
Color Temperature 3200-9300K adjustable
Brightness Uniformity ≥98%
Color Uniformity Within 0.003Cx, Cy
Horizontal/Vertical View Angle 160°（±10°）
Contrast Ratio ≥10000:1
Color Calibration of Single Dot Yes
Brightness Calibration of Single Dot Yes
Drive Mode Constant Current Drive
Standard Receiving Card A7S A5S-PLUS A5S-PLUS A5S-PLUS A7S
Refresh Frame Frequency 50/60 Hz
Max Refresh Rate ≥2880Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥2880Hz
Network Connection Port RJ45
Input Voltage AC 110-220V
Module Max Current DC DC4.2V
Module Input Voltage DC 2.5A
Cabinet Max Power Consumption ≤450W/m2
Cabinet Aver. Power Consumption ≤150W/m2

*Remark: The XD-250WH1 series fixed indoor  is available in 2 sizes
（500x500mm / 1000x500mm )

Accessories

Sending box

Power Supply

LED suction cup

Mounting accessories

Signal cable

Power Supply

Movable power cabinet

Flight case
