XD-COB Series mini flip chip technology, anti-collision, HDR picture quality. Common cathode circuit with low power consumption. 3 in 1 integrated system.
Certificates: 3C, CE,CB, ETL, FCC, ROHS, CQC
Price:
Double Face LED Display
Mini COB Contrast Ratio 10000:1,
Power supply, control system and hub card 3 in 1 integrated system, more lighter weight..
Easy cleaning by water, anti-collision
High precision stitching, micron tolerance and adjustable
Common cathode circuit with low power consumption.
Panel View

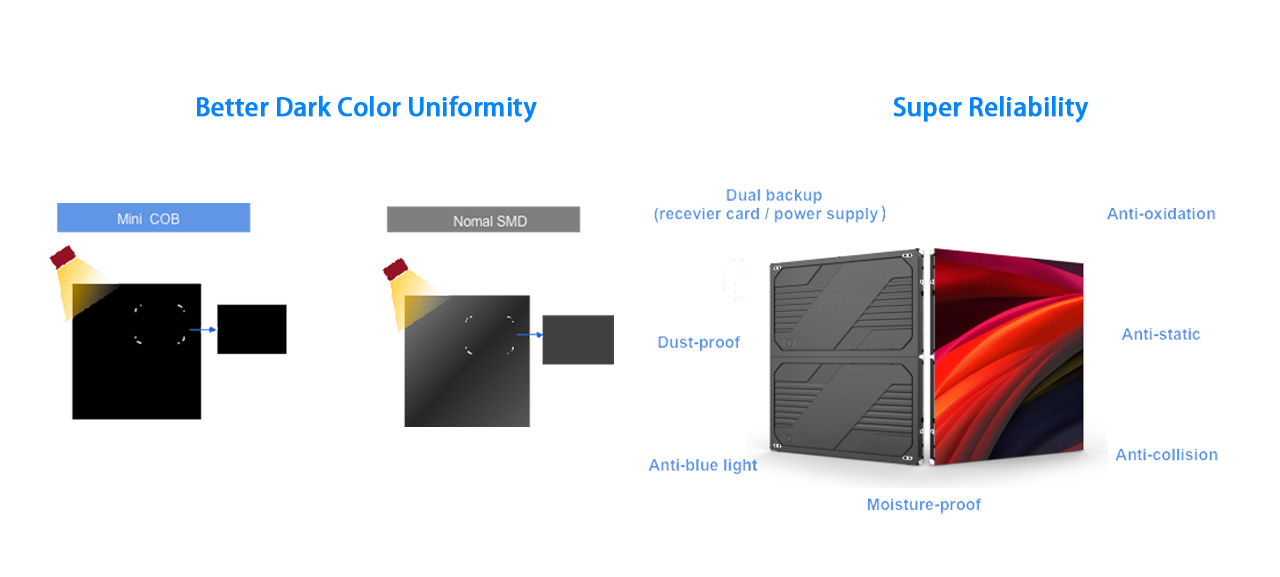

Higher Contrast Ratio

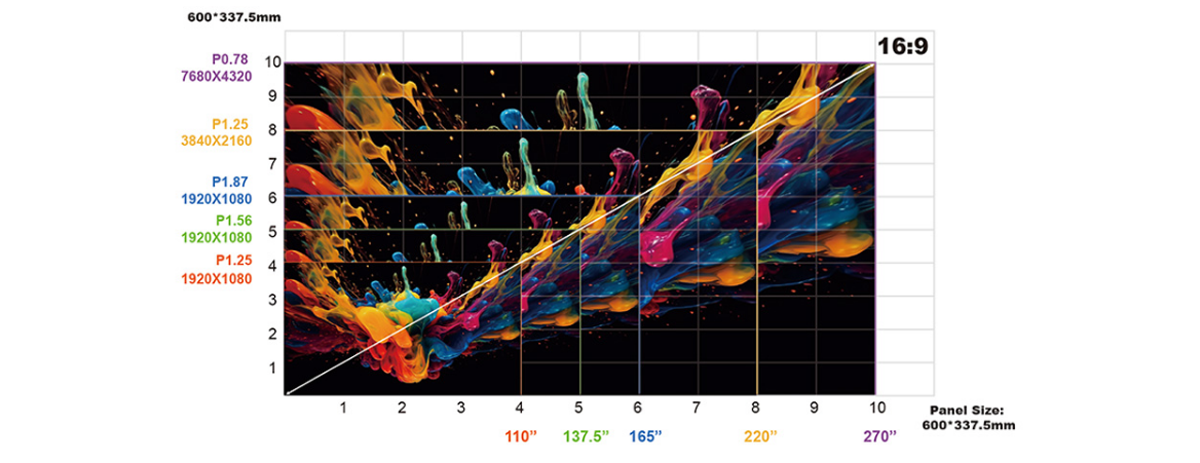

Pixel to Pixel 8K&4K&HD Resolutions Standard 16:9 size
In aging Test
cases
XD-C Series Indoor Front Service
Pixel Pitch
0.78mm
0.93mm
1.25mm
1.56mm
1.87mm
Module
150*168.75mm
Resolution Dot
192*216
160*180
120*135
96*108
80*90
Surface Treatment
Matt COB
Panel Size
600*675*39.5mm / 600*337. 5*39. 5mm
Panel Weight
7. 9kg ( 600*675mm) / 4kg ( 600*337. 5mm)
Panel Resolution (dot)
768*864/768*432
640*720/640*360
480*540/480*270
384*432/384*216
320*360/320*180
Pixel Density(dot/m')
1,638,400
1,137,777
640,000
409,600
284,444
Circuit Design
Common cathode circuit
Flash Correction Storage
Applicable
Brightness of White Balance
Standard 600nits
Refresh Rate
1920-3840Hz
Contrast Ratio
10000: 1 (Condition without lighting
Color Temperature
9300K (Standard)
Viewing Angle
160°
Input Voltage
AC 100~240V 50/60Hz
Max. Power Consumption (White Balance 600nit)
170W/Panel
(600*675mm);
85W/Panel
(600*337mm)
150W/Panel
(600*675mm);
75W/Panel
(600*337mm)
140W/Panel
(600*675mm);
70W/Panel
(600*337mm)
140W/Panel
600*675mm);
70W/Panel
(600*337mm)
130W/Panel
(600°675mm);
65W/Panel
(600*337mm)
Maintenance Way
Front Service
IP level of PCB serface
IP54 (Washable by clean water)
Operating Temperature
-10°C-+40°C/10%RH-90%RH
Stroage Temperature
-20°C-+60°C/10%RH-90%RII
Certificate
3C, CE, CB, ETL, FCC, ROHS, CQC
