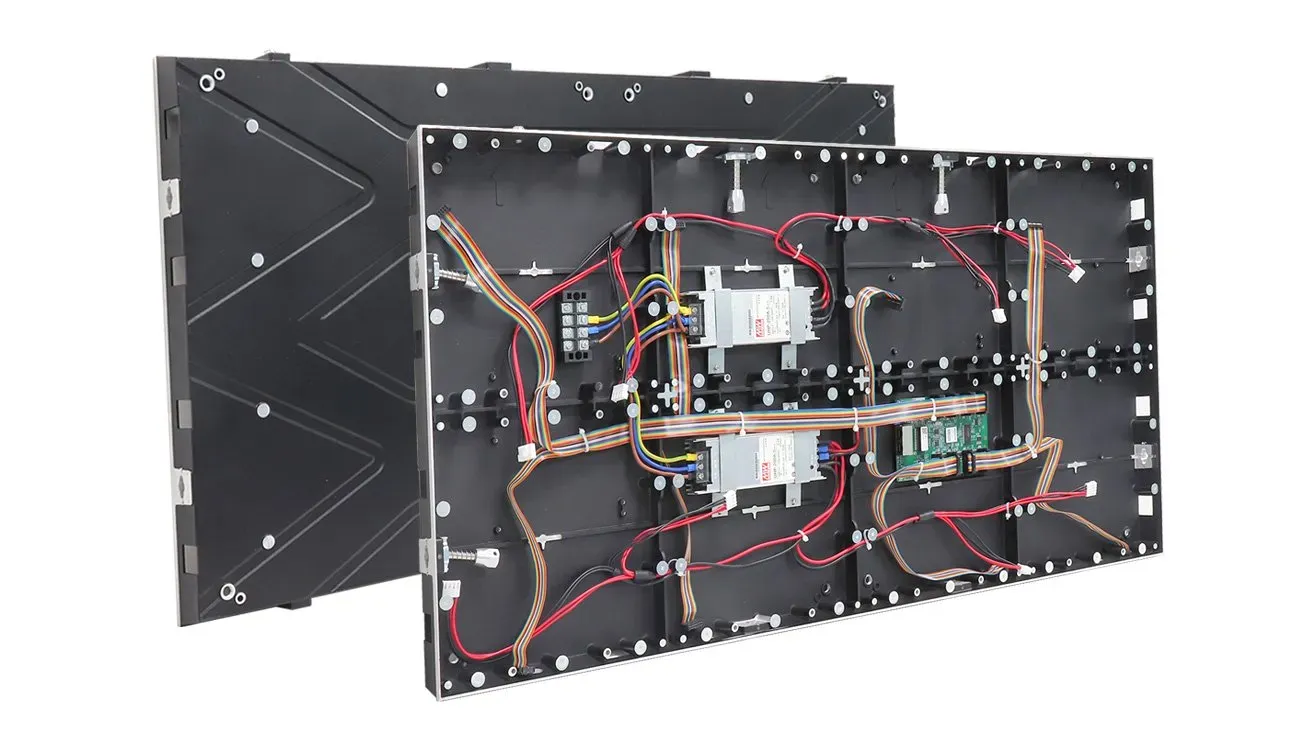

Commercial Advertising LED Display XD-250W Series Indoor Wallpaper Front Service LED Panel
● Easy maintenance and service
● XD-250W with P1.95, P2.6, P2.97, P3.91, P4.81
● Perfect screen flatness
● Support fully front service
● 250mm×250mm size module
● Different modules use same magnetic cabinet
● XD-250W will have the best cost advantage
Pixel Pitch (mm) | P1.95 | P2.6 | P2.97 | P3.91 | P4.81 |
Model | XD-250W-P1.95 | XD-250W-P2.6 | XD-250W-P2.97 | XD-250W-P3.91 | XD-250W-P4.81 |
Pixel Configuration | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
Density (Pixels/㎡) | 262,144 | 145,456 | 112,896 | 65,536 | 43,264 |
Module Resolution (Pixel) | 128x128 | 96x96 | 84x84 | 64x64 | 52x52 |
Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
Driving Mode (Duty) | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 |
Cabinet Size (mm) | 1000x250 * | 1000x250 * | 1000x250 * | 1000x250 * | 1000x250 * |
Cabinet Weight (KG) | 6 | 6 | 6 | 6 | 6 |
Brightness (CD/㎡) | ≥1200 | ≥1200 | ≥1,000 | ≥1,200 | ≥1,000 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 576 | 560 |
Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 192 | 190 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
Working Temperature (ºC) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
Lifetime (Hours) | 100,000 | 100,00 | 100,000 | 100,000 | 100,000 |
Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
