XD-169FB

XD-169FB Series 16:9 Indoor Front Service HD LED Screen | Xtreme

High-quality Indoor Front Service HD LED Display XD169FB Series Indoor LED Video Wall
●  Easy maintenance and service
● Xtreme could do with  P0.93, P1.25 , P1.56, P1.87
●  Perfect screen flatness
●  Support fully front service
●  320mm×180mm size module
●  640mm×360mm size cabinet
●  Could make 2K  4K  8K Vision studio
●  The cabinet is light and thin
●  Wide viewing angle, no reflection

Price:

$1,680.76$5,599.90

640x360mm 16:9 HD LED Screen XD-169F2 Series

16 : 9 Cabinet Size Design with 640x360mm dimension, Die cast aluminum cabinet, guarantee you a flat and seamless screeneasy to install and disassemble

16:9 Cabinet Design

XD-169F2 Series 16:9 LED Screen with Cabinet’s 16:9 resolution, Perfect replacement for LCD display. Dot-to-dot correction technology provide you pure image with great gradation.

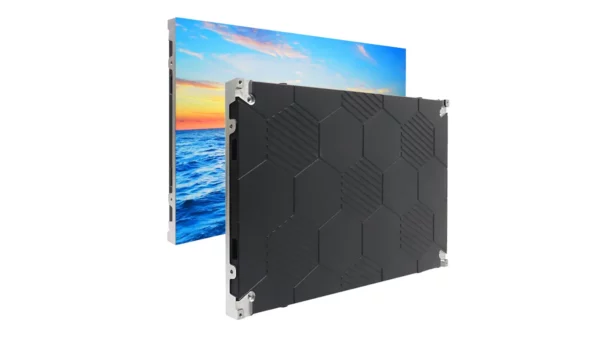

Perfect Cabinet Structure

The XD-169F2 Series cabinet is beautiful and generous, humanized layout, convenient installation and maintenance,giving you a pleasing visual experience.

Front Service

The XD-169F2 series LED Screen is suitable for full front-end service design, it is easy to maintain, saving on-site time and labor. The LED modules are assembled on the front and are magnetic.

16K HD Visual Experience

With a cabinet ratio 16 : 9, the XD169F1 Series LED Screen is bespoke in size, flexible in installation and compatible with all the prevailing video formats, making it easier to create FHD, 2K, 4K, 8K and 16K video wall.

High Quality Thin LED Panel

XD-169F2 series 16:9 ratio LED display adopts high quality LED panel. Front-maintenance lightweight modules enhance the visual effect of the space and its visual effects.

Ultra Light Weight Cabinet

The XD-169F2 Series LED screen weight Only 4.1kg, easy for transport, save your labor cost, also light weight is convenient for installation, assembly and disassembly.

Wide Viewing Angle

Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

Indoor 640x360mm Front Service HD LED Screen XD169F2 Series Parameter

Pixel Pitch (mm) P1.25 P1.53 P1.86 P2 P2.5 P3.076 P4
Model EA640DF-P1.25 EA640DF-P1.53 EA640DF-P1.86 EA640DF-P2 EA640DF-P2.5 EA640DF-P3.076 EA640DF-P4
Pixel Configuration SMD1010 SMD1010 SMD1515 SMD1515 SMD2121 SMD2121 SMD2121
Density (Pixels/㎡) 640,000 422,500 288,906 250,000 160,000 105,688 62,500
Module Resolution (Pixel) 256x128 208x104 172x86 160x80 128x64 104x52 80x40
Module Size (mm) 320x160 320x160 320x160 320x160 320x160 320x160 320x160
Driving Mode (Duty) 1/32 1/26 1/43 1/40 1/32 1/26 1/20
Cabinet Size (mm) 640x480 640x480 640x480 640x480 640x480 640x480 640x480
Cabinet Weight (KG) 9 9 9 9 9 9 9
Brightness (CD/㎡) 600 600 600 700 800 800 700
Viewing Angle (°) 140 140 140 140 140 140 140
Gray Grade (Bits) 14 14 14 14 14 14 14
Operation Power AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 580 580 580 439 457 413 351
Avg. Power Consumption (W/㎡) 195 195 195 150 153 138 117
Frame Frequency (Hz) ≥60 ≥60 ≥60 ≥60 ≥60 ≥60 ≥60
Refresh Frequency (Hz) ≥3,840 ≥3,840 ≥3,840 ≥3,840 1920~3,840 1920~3,840 1920~3,840
Working Temperature (ºC) -20~+60 -20~+60 -20~+60 -20~+60 -20~+60 -20~+60 -20~+60
Lifetime (Hours) 100,000 100,000 100,000 100,000 100,000 100,000 100,000
MTBF(hours) >10,000 >10,000 >10,000 >10,000 >10,000 >10,000 >10,000
Protection Grade IP31 IP31 IP31 IP31 IP31 IP31 IP31
