Xtreme Outdoor Fixed Installation LED Screen XD-OFixed Series Fixed LED Display compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market. Xtreme LED summarizes the defects of past products, and continuously improves them. The specifications of Xtreme Outdoor Fixed Installation LED Screen XD-OFixed Series Fixed LED Display can be customized according to your needs.
Outdoor Commercial Advertising LED Display Screen XD-OFixed Fixed Installation LED Video Wall
● Best color uniformity and high brightness
● The back cover can be opened for easy maintenance
● Exquisite cabinet design
● 4 fans per cabinet (960mmx960mm)
● Working outdoors 24/7
● IP65 dustproof and waterproof
● Various sizes to choose from

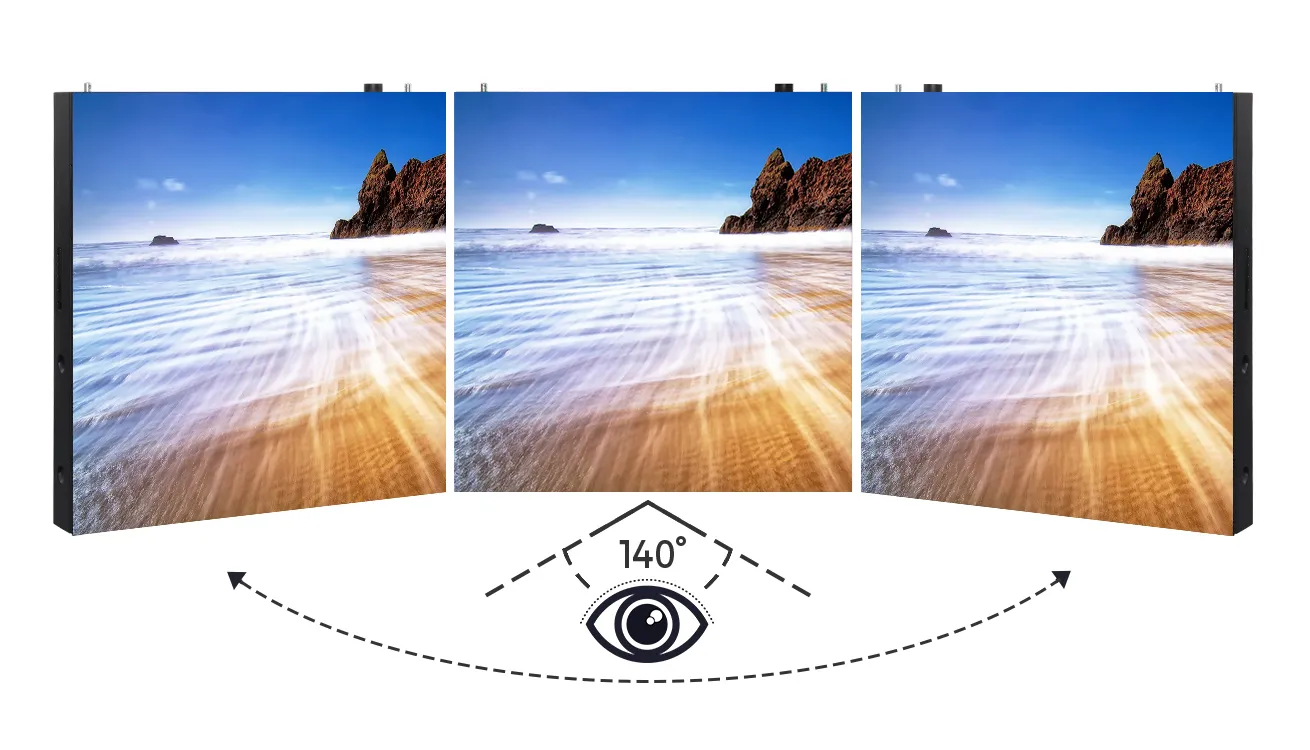

● Wide viewing angle, no reflection
| Pixel Pitch (mm) | P3 | P4 | P5 | P6 | P8 | P10 (2S) | P10 (4S) | P10 (DIP) | P10 (DIP) | P16 (DIP) |
| Model | XD-OFixed-P3-576x576 | XD-OFixed-P4-512x512 | XD-OFixed-P5-640x640 | XD-OFixed-P6-768x768 | XD-OFixed-P8 -1024x768 | XD-OFixed-P10-2S -960x960 | XD-OFixed-P10-4S -960x960 | XD-OFixed-P10D-32x16-960x960 | XD-OFixed-P10D-16x16-960x960 | XD-OFixed-P16D -1024x1024 |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | DIP346 | DIP346 | DIP346 |
| Density (Pixels/㎡) | 111,111 | 62,500 | 40,000 | 27,778 | 15,625 | 10,000 | 10,000 | 10,000 | 10,000 | 3,906 |
| Module Resolution (Pixel) | 64x64 | 64x32 | 64x32 | 32x32 | 32x16 | 32x16 | 32x16 | 32x16 | 16x16 | 16x16 |
| Module Size (mm) | 192x192 | 256x128 | 320x160 | 192x192 | 256x128 | 320x160 | 320x160 | 320x160 | 160x160 | 256x256 |
| Driving Mode (Duty) | 1/16 | 1/8 | 1/8 | 1/8 | 1/4 | 1/2 | 1/4 | 1/4 | 1/4 | 1/1 |
| Cabinet Size (mm) | 576x576 | 512x512 | 640x640 | 768x768 | 1024x768 | 960x960 | 960x960 | 960x960 | 960x960 | 1024x1024 |
| Cabinet Weight (KG) | 15 | 11 | 16 | 23.5 | 30 | 36 | 36 | 36 | 36 | 42 |
| Brightness (CD/㎡) | ≥5,500 | ≥5,500 | ≥6,000 | ≥6,500 | ≥6,500 | ≥≥7,500 | ≥6,000 | ≥8,000 | ≥8,000 | ≥9,000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 810 | 900 | 836 | 840 | 760 | 850 | 540 | 520 | 520 | 540 |
| Avg. Power Consumption (W/㎡) | 270 | 300 | 280 | 280 | 260 | 285 | 180 | 175 | 175 | 180 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Pixel Pitch (mm) | P3(die-cast) | P4(die-cast) | P4(die-cast) | P6(die-cast) | P8(die-cast) | P8(die-cast) |
| Model | XD-OFixed-P3-C576x576 | XD-OFixed-P4-C768x768 | XD-OFixed-P4-C1024x768 | XD-OFixed-P6-C768x768 | XD-OFixed-P8-C768x768 | XD-OFixed-P8-C1024x768 |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 111,111 | 62,500 | 62,500 | 27,778 | 15,625 | 15,625 |
| Module Resolution (Pixel) | 64x64 | 64x32 | 64x32 | 32x32 | 32x16 | 32x16 |
| Module Size (mm) | 192x192 | 256x128 | 256x128 | 192x192 | 256x128 | 256x128 |
| Driving Mode (Duty) | 1/16 | 1/8 | 1/8 | 1/8 | 1/4 | 1/4 |
| Cabinet Size (mm) | 768x768 | 768x768 | 1024x768 | 768x768 | 768x768 | 1024x768 |
| Cabinet Weight (KG) | 23 | 23 | 30 | 23 | 23 | 30 |
| Brightness (CD/㎡) | ≥5,500 | ≥5,500 | ≥5,500 | ≥6,500 | ≥6,500 | ≥6,500 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 810 | 900 | 900 | 840 | 760 | 760 |
| Avg. Power Consumption (W/㎡) | 270 | 300 | 300 | 280 | 260 | 260 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
