XD-960R1

XD-960R1 Series 960×960mm Standard Rear Service LED Screen | Xtreme

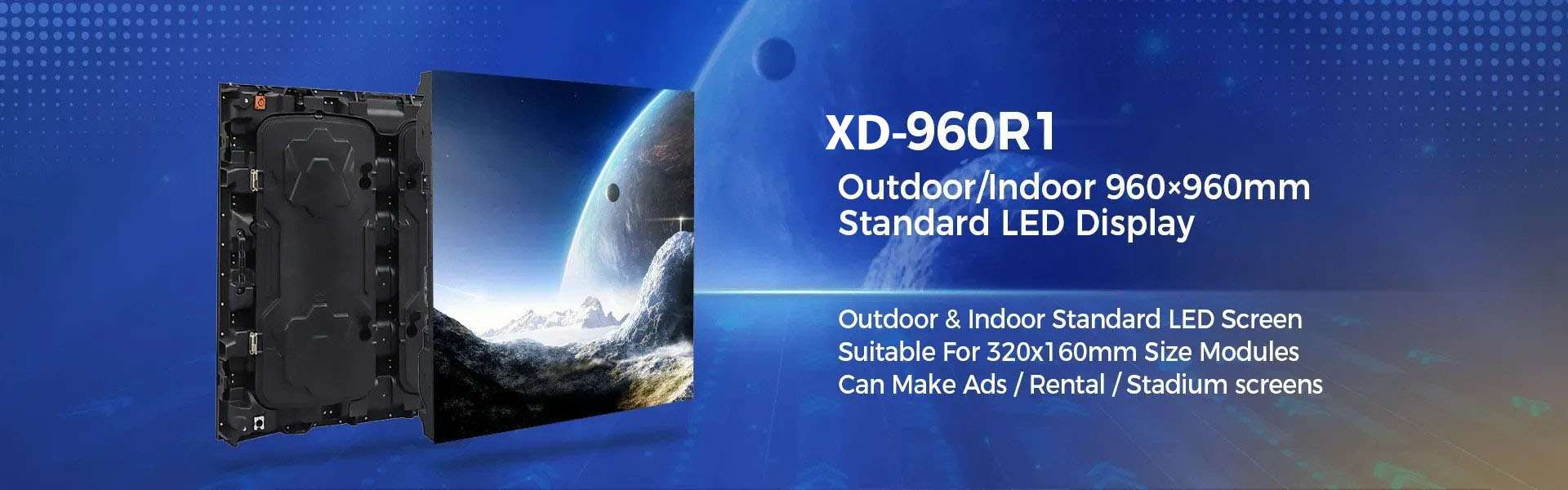

Commercial LED  Display Screen XD-960R1 960×960 Standard Rear Service LED Display

● High Refresh Rate is more than 1920Hz
● The display could be operate in - 20 ℃ ~50℃
● Module size 320×320mm, Cabinet size 960x960x120mm
● Easy maintenance and operation

Price:

$656.04 – $1,772.54

960x960mm Standard LED Screen XD-960R1 Series

We use this 960x960mm die-cast cabinet, which fits all 320x160mm modules for outdoor and indoor use. You can use this 960x960mm standard cabinet to make fixed installation advertising screen, rental screen and stadium perimeter screen. We also call it as multifunction 960×960 cabinet.

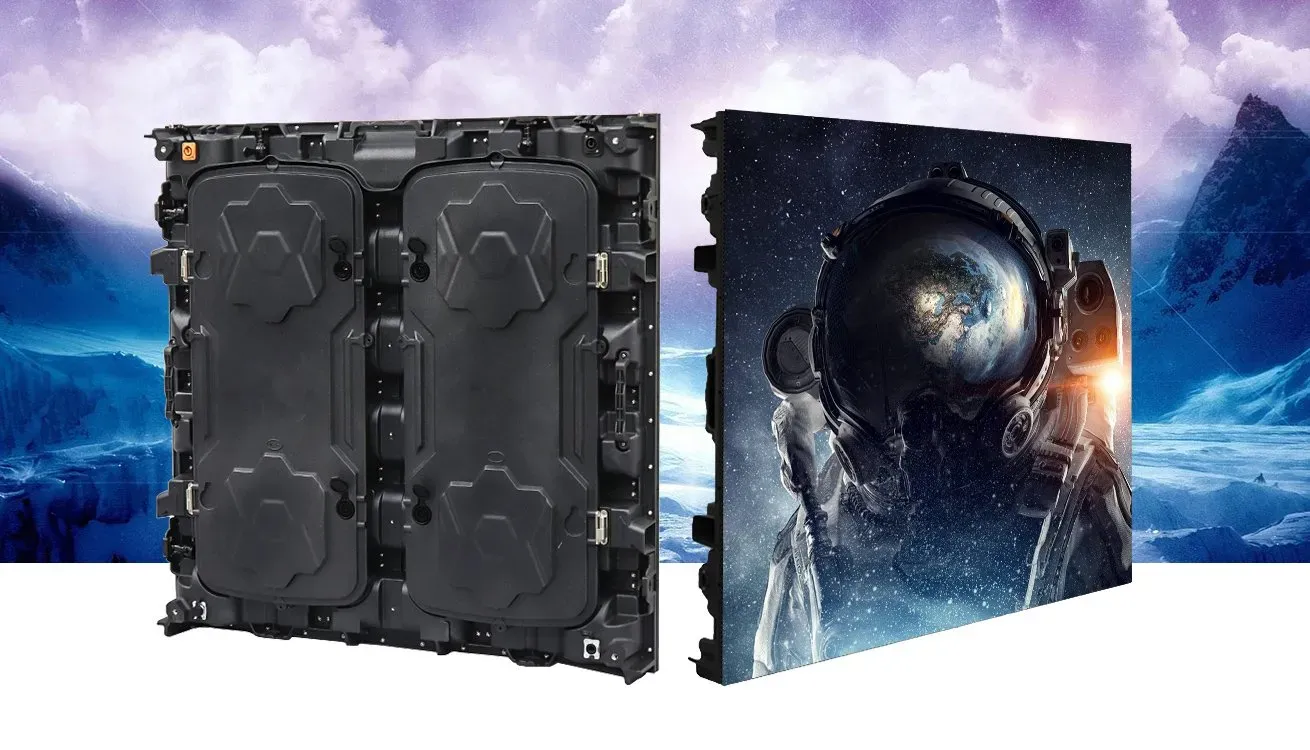

960mmX960mm Standard Display Cabinet

XD-960R1 Series LED display with 960mmx960mm standard size cabinet design. Unify the Standard LED Display Cabinet Screw Holes for all Kinds of standard led module (320*160mm).

320mmX160mm Standard LED Module

XD-960R1 Series LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain. Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

Delicated Cabinet Design

XD-960R1 Series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps. Humanization handlebar design make you more easy to move the cabinet.

Ultra Lightweight Cabinet

XD-960R1 Series LED display weight Only 25kg, easy for transport, save your labor cost, also light weight is convenient for installtion, assembly and disassembly.

Seamless Splicing, Excellent Display Experience

Quipped with unique lock, the position of each cabinet can be precisely adjusted from Six directions, left or right, up or down, front or back, so every cabinet can be positioned to the exact place with accuracy to millimeter, presenting a ultraflat and seamless cabinet alignment.

IP65 Waterproof

The ingress protection of cabinet rating up to IP65, the fully sealed cabinet is weatherproof, dustproof, damp-proof, bringing the ingress protection of led display up to a new level.

Wide Viewing Angle

Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

Outdoor 960×960mm Standard LED Screen XD-960R1 Series Parameter

Pixel Pitch (mm)P2.5P3.076P4P5P6.67P8P10 (2S)P10 (4S)P10 (DIP)
ModelXD-960R1-OP2.5XD-960R1-OP3.076XD-960R1-OP4XD-960R1-OP5XD-960R1-OP6.67XD-960R1-OP8XD-960R1-OP10-2SXD-960R1-OP10-4SXD-960R1-OP10D
Pixel ConfigurationSMD1415SMD1415SMD1921SMD2727SMD3535SMD3535SMD3535SMD3535DIP346
Density (Pixels/㎡)160,000105,62562,50040,00022,50015,62510,00010,00010,000
Module Resolution (Pixel)128x64104x5280x4064x3248x2440x2032x1632x1632x16
Module Size (mm)320x160320x160320x160320x160320x160320x160320x160320x160320x160
Driving Mode (Duty)1/161/131/101/81/61/51/21/41/4
Cabinet Size (mm)960x960960x960960x960960x960960x960960x960960x960960x960960x960
Cabinet Weight (KG)292929292929292930
Brightness (CD/㎡)≥5,000≥5,000≥5,500≥6,000≥6,500≥6,500≥7,500≥6,000≥8,000
Viewing Angle (°)140140140140140140140140140
Gray Grade (Bits)141414141414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)690786909836892600850540520
Avg. Power Consumption (W/㎡)230262303280298200285180175
Frame Frequency (Hz)≥60≥60≥60≥60≥60≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60
Lifetime (Hours)100,000100,000100,000100,000100,000100,000100,000100,000100,000
Protection GradeIP65IP65IP65IP65IP65IP65IP65IP65IP65

Indoor 960×960mm Standard LED Screen XD-960R1 Series Parameter

Pixel Pitch (mm)P2.5P3.076P4P5
ModelXD-960R1-iP2.5XD-960R1-iP3.076XD-960R1-iP4XD-960R1-iP5
Pixel ConfigurationSMD2020SMD2020SMD2020SMD2020
Density (Pixels/㎡)160,000105,62562,50040,000
Module Resolution (Pixel)128x64104x5280x4064x32
Module Size (mm)320x160320x160320x160320x160
Driving Mode (Duty)1/321/261/201/16
Cabinet Size (mm)960x960960x960960x960960x960
Cabinet Weight (KG)25252525
Brightness (CD/㎡)≥1,000≥1,000≥800≥800
Viewing Angle (°)140140140140
Gray Grade (Bits)14141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)457413351312
Avg. Power Consumption (W/㎡)153138117104
Frame Frequency (Hz)≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20～+60-20～+60-20～+60-20～+60
Lifetime (Hours)100,000100,000100,000100,000
Protection GradeIP31IP31IP31IP31
