XD3D-VR Outdoor 3D VR LED Display 3D Billboard

XD3D-VR Outdoor 3D VR LED Display 3D Billboard

XD3D-VR LED display is a high-tech advertising 3D LED display board. The product uses a number of core
technologies, supports curved display, presents naked-eye 3D display effects,and stimulates
people’s interest in advertising.

Front and Rear Service Design

Designed with front and rear dual service, the LED panel can be assembled and disassembled easily and quickly,
saving you maintenance costs.

Cable-less Deisgn

The power and data cables of the LED display are hidden at the bottom of the panel.

Energy Saving

Thanks to the updated PCB, ICs and power supply design, XD3D-VR LED display board are more energy-efficient
than traditional outdoor screens.

90° Curved Display

XD3D-VR LED display can be customized with 90° curved cabinet to achieve 3D display effect.

Superb Display Effect

In commercial display applications, the high brightness and high refresh rate of XD3D-VR LED screens bring users more
realistic naked-eye 3D visual effects.

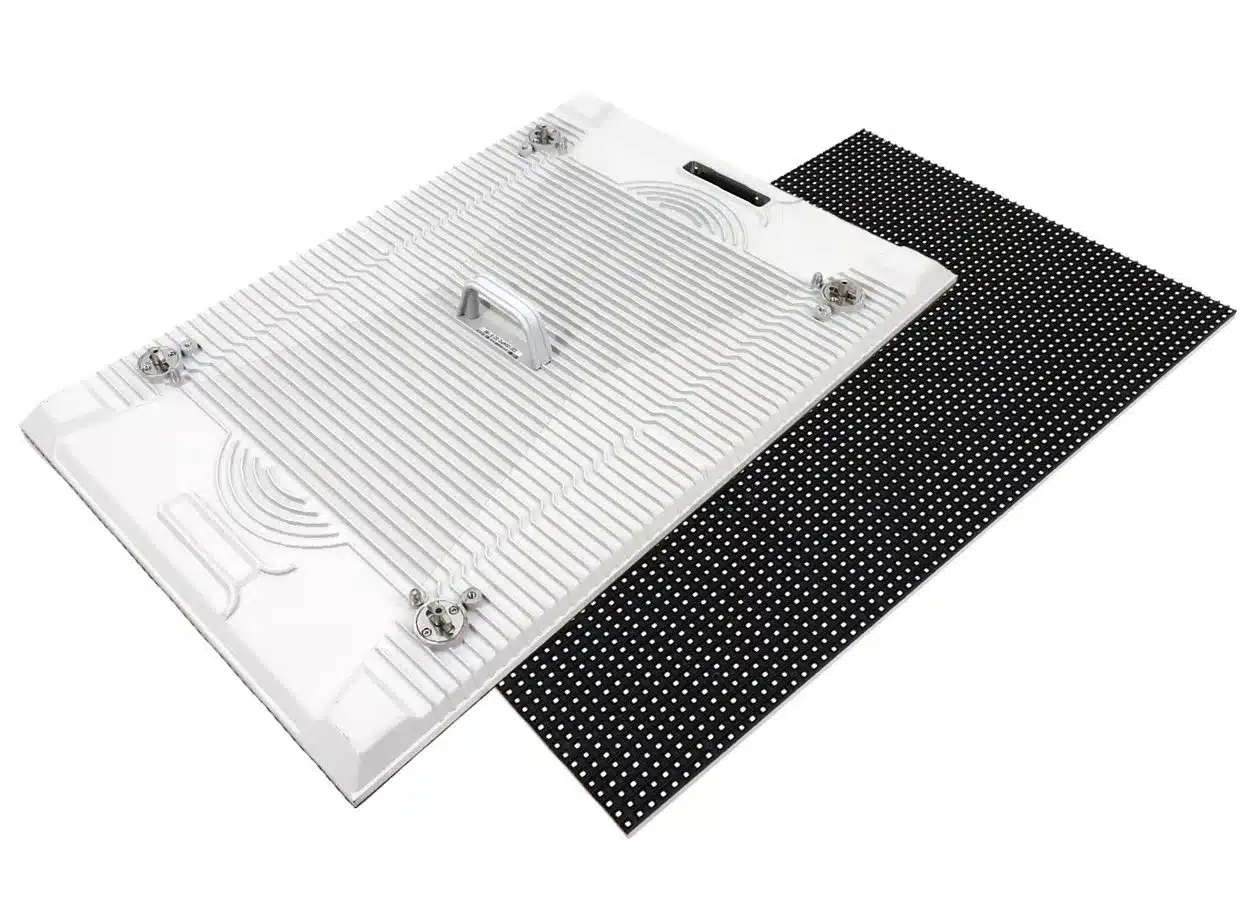

High Quality LED Module

Die-cast aluminum LED modules are resistant to high temperatures and corrosion. The module uses a radiator to
increase the heat dissipation area and dissipate heat quickly.

IP66 Waterproof

The protection level of the cabinet is as high as IP66, which is weatherproof and dustproof, raising the protection level of
the LED display to an extremely high level.

Application Scenarios

XD3D-VR LED display billboard is specially designed for naked-eye 3D large screens, and is suitable for
commercial plazas, commercial activity venues, billboards, etc.

XD3D-VR Outdoor 3D VR LED Display Billboard Parameter

Pixel Pitch (mm)P3.91P3.91P6.67P6.67P10P10
ModelXD3D-VR-P3.91-500x1000XD3D-VR-P3.91-125x1000XD3D-VR-P6.67-960x960XD3D-VR-P6.67-120x960XD3D-VR-P10-960x960XD3D-VR-P10-120x960
Pixel ConfigurationSMD1921SMD1921SMD 2727SMD 2727SMD3535SMD3535
Density (Pixels/㎡)65,53665,53622500225001000010000
Module Resolution (Pixel)128x645x25672x483x14448x322x96
Module Size (mm)500x25018x1000480x32018x960480x32018x960
Driving Mode (Duty)1/81/81/61/61/21/2
Cabinet Size (mm)500x1000125x1000960x960120x960960x960120x960
Cabinet Weight (KG)175284284
Brightness (CD/㎡)500050005500550060006000
Viewing Angle (°)140140140140140140
Gray Grade (Bits)141414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)650650672672550550
Avg. Power Consumption (W/㎡)195195269269185185
Frame Frequency (Hz)≥60≥60≥60≥60≥60≥60
Refresh Frequency (Hz)3,8403,8403,8403,8403,8403,840
Working Temperature (ºC)-30~+60-30~+60-30~+60-30~+60-30~+60-30~+60
Lifetime (Hours)100,000100,000100,000100,000100,000100,000
Protection GradeIP66IP66IP66IP66IP66IP66
