Xtreme Grid LED Display XD-1000G Series Grid LED Screen Outdoor 500x1000mm LED Panel compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market. Xtreme summarizes the defects of past products, and continuously improves them. The specifications of Xtreme Grid LED Display XD-1000G Series Grid LED Screen Outdoor 500x1000mm LED Panel can be customized according to your needs.
Outdoor LED grid screens are strips of grid-like LEDs for outdoor or glass curtain walls, building tops, etc. Grid LED display screen is light weight, high brightness, high transparency, IP67 waterproof guarantee, easy to install, manage and maintain.
● Lightweight 500×1000mm cabinet size
● Ultra Lightweight and Thin Design
● LED display panel is only 6.5kg
● Up to 70% transparency
● IP67 Dustproof and Waterproof
● High Gloss Energy Saving
● Wide viewing angle, no reflection
$690.00 – $1,088.78
| Pixel Pitch (mm) | P15.6-15.6 | P31.2-15.6 | P31.2-31.2 |
| Model | XD1000G-P15.6-15.6 | XD1000G-P31.2-15.6 | XD1000G-P31.2-31.2 |
| Pixel Pitch | 15.6mm(H); 15.6mm(V) | 31.2mm(H); 15.6mm(V) | 31.2mm(H); 31.2mm(V) |
| Pixel Configuration | DIP346 | DIP346 | DIP346 |
| Density (Pixels/㎡) | 4096 | 2048 | 1024 |
| Driving Mode | 1/8 | 1/16 | 1/16 |
| Cabinet Resolution | 64x64 | 32x64 | 32x32 |
| Cabinet Size (mm) | 500x1000x67 | 500x1000x67 | 500x1000x67 |
| Cabinet Weight (KG) | ≈10 | ≈7.5 | ≈6.5 |
| Brightness (CD/㎡) | ≥10000 | ≥8500 | ≥7000 |
| Transparency | 37% | 70% | 70% |

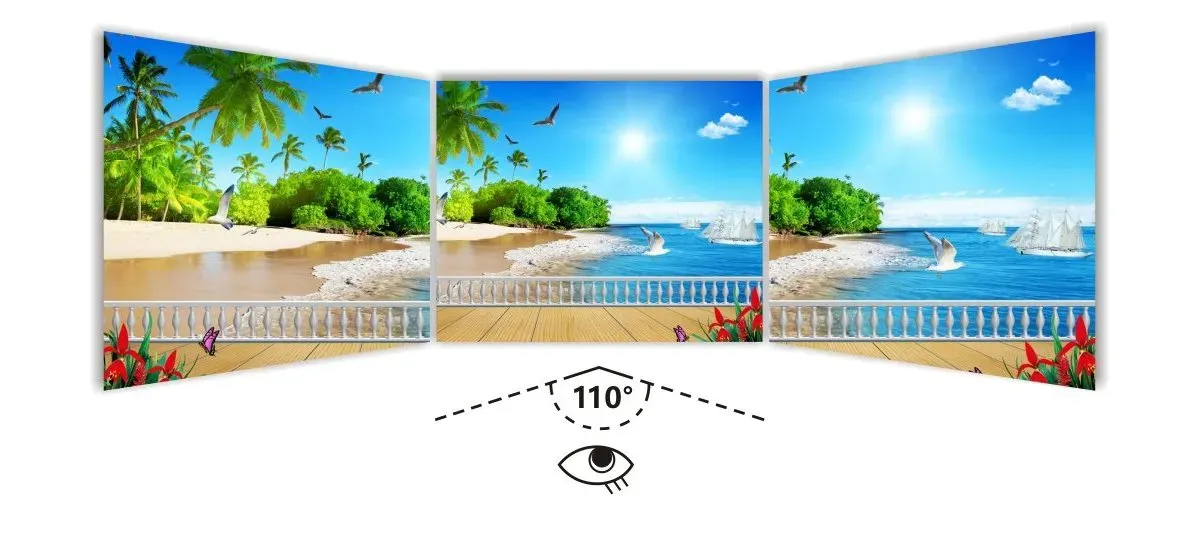

| Viewing Angle (°) | 110 | 110 | 110 |
| Best Viewing Distance | ≥16m | ≥32m | ≥32m |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 450 | 450 | 350 |
| Avg. Power Consumption (W/㎡) | 150 | 150 | 120 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3840 | 3840 | 3840 |
| Working Temperature (℃) | -35～+80 | -35～+80 | -35～+80 |
| Working Humidity | 10%～90% RH | 10%～90% RH | 10%～90% RH |
| Lifetime (Hours) | 100000 | 100000 | 100000 |
| Protection Grade | IP67 | IP67 | IP67 |
