Xtreme is Professional LED screen manufacturer and LED display solution provider.


Xtreme Stadium Perimeter LED Display Board 960×960mm XD-960SP Series LED Billboard Outdoor LED Screen

Xtreme Stadium Perimeter LED Display Board 960×960mm XD-960SP Series LED Billboard Outdoor LED Screen  compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market. Xtreme summarizes the defects of past products, and continuously improves them. The specifications of Xtreme Stadium Perimeter LED Display Board 960×960mm XD-960SP Series LED Billboard Outdoor LED Screen can be customized according to your needs.
Commercial LED Display Screen XD-960SP 960×960 Stadium Perimeter Rear Service LED Display
● The display could be operate in - 20 ℃ ~50℃
●  960x960mm iron cabinet, stable structure
●  Adapt to various installation environments
●  Fast installation and maintenance of modules
●  With an independent support structure
●  Soft Pillow Design protect LED screen
●  High Refresh Rate Perfect picture
●  140°Wide Viewing Angle

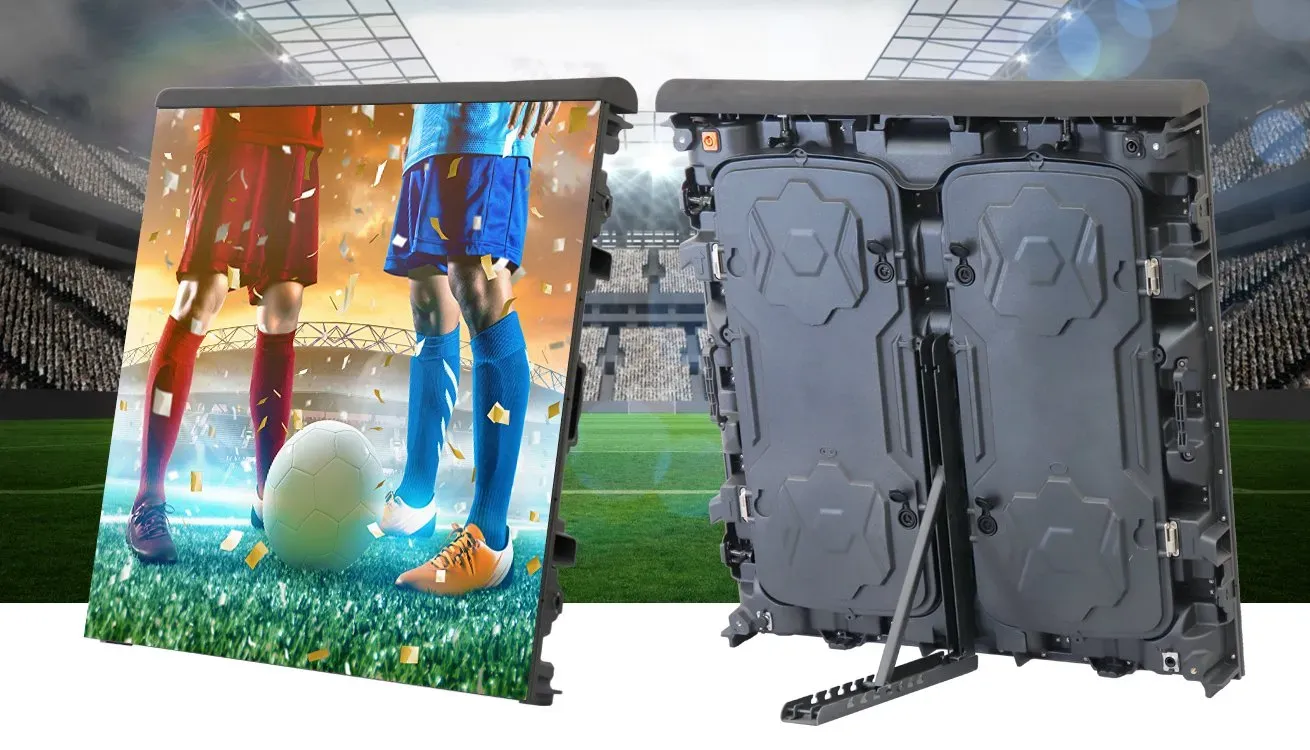

XD960SP 960×960mm Stadium Perimeter LED Display

The stadium perimeter LED display is IP65 waterproof, with front service module, adjustable rear bracket, soft pillow and quick lock.All these features ensure that the LED screen can adapt to various stadium environments.

Delicated Cabinet Design

XD960SP series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps. Humanization handlebar design make you more easy to move the cabinet.

Independent Support Structure

With an independent support structure, it can stand even if it is impacted by a strong external force. The installation angle of the cabinet can be flexibly changed according to the actual situation on site.

Soft Pillow Design

Because of the special environment of the stadium, the top of the cabinet is equipped with soft pillows. This special part acts to protect the player and the LED screen.

High Refresh Rate

The refresh rate of up to 3800Hz, real-time switching without flicker, ensures a fine high-definition display screen.

960mmX960mm Standard Display Cabinet

XD960SP Series LED display with 960mmx960mm standard size cabinet design. Unify the Standard LED Display Cabinet Screw Holes for all Kinds of standard led module (320*160mm).

320mmX160mm Standard LED Module

XD960SP Series LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain. Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

IP65 Waterproof

The ingress protection of cabinet rating up to IP65, the fully sealed cabinet is weatherproof, dustproof, damp-proof, bringing the ingress protection of led display up to a new level.

Wide Viewing Angle

Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

XD960SP Outdoor 960×960mm Stadium Perimeter LED Display Parameter

Pixel PitchP6.67P8P10 (2S)P10 (4S)
Pixel ConfigurationSMD3535SMD3535SMD3535SMD3535
Density (Pixels/㎡)22,47815,62510,00010,000
Module Resolution (Pixel)48x2440x2032x1632x16
Module Size (mm)320x160320x160320x160320x160
Driving Mode (Duty)1/61/51/21/4
Cabinet Size (mm)960x960960x960960x960960x960
Cabinet Weight (KG)28.528.528.528.5
Brightness (CD/㎡)≥6,500≥6,500≥7,500≥6,000
Viewing Angle (°)140140140140
Gray Grade (Bits)14141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)892600850540
Avg. Power Consumption (W/㎡)298200285180
Frame Frequency (Hz)≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000100,000
Protecting GradeIP65(front),IP54(rear)IP65(front),IP54(rear)IP65IP65(front),IP54(rear)IP65(front),IP54(rear)
